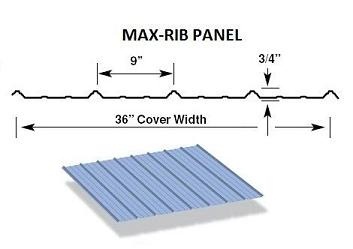

MAX-RIB PANEL
[EXPOSED FASTENER PANEL]
29, 26, & 24GAUGES

MAX-RIB
Max-Rib is a low profile (3/4") panel that is well
suited for commercial, agricultural and residential
applications. Can be installed on as low as a 1:12
pitch if sealant is used on the sidelaps. If not,
a 3:12 pitch is recommended.
Approvals
Fire Resistance (UL263) Ratings
Fire Resistance (UL790) of Roof Covering Materials
Florida State Approval Non-Structural Metal Roofing
Florida State Approval structural Metal Roofing
Impact Resistance (UL2218) Class 4
Section Properties & Load Tables
Max-Rib 24 ga. 50 KSI
Max-Rib 24 ga. 80 KSI
Max-Rib 26 ga. 50 KSI
Max-Rib 26 ga. 80 KSI
Max-Rib 29 ga. 80 KSI Bare
Max-Rib 29 ga. 80 KSI G100 & Painted

Details
Max-Rib Must be installed
over solid decking.
Testing Data
UL580 Class 90 - Uplift Test
UL 2218 - Class 4 Impact Resistance
Florida State Approval




PANEL PRICING IS BASED PER LINEAR FOOT (LF)
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$2.87 LF 29 NO WARRANTY SILICONIZED POLYESTER 1.97lbs
$2.13 LF 29 25 YEAR BARE GALVALUME 1.97lbs
$2.84 LF 29 30 YEAR SILICONIZED POLYESTER 1.97lbs
$3.13 LF 29 40 YEAR KYNAR 500 1.97lbs
$3.45 LF 29 40 YEAR KYNAR 500 "PREMIUM COLORS" 1.97lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$2.61 LF 26 25 YEAR BARE GALVALUME 2.45lbs
$3.49 LF 26 30 YEAR SILICONIZED POLYESTER 2.45lbs
$3.67 LF 26 40 YEAR KYNAR 500 2.45lbs
$3.98 LF 26 40 YEAR KYNAR 500 "PREMIUM COLORS" 2.45lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$3.14 LF 24 25 YEAR BARE GALVALUME 3.13lbs
$4.32 LF 24 40 YEAR KYNAR 500 3.13lbs
$4.63 LF 24 40 YEAR KYNAR 500 "PREMIUM COLORS" 3.13lbs
*Product And Installtion Guides are at to top of this page.
*SP = SILICONIZED POLYESTER
