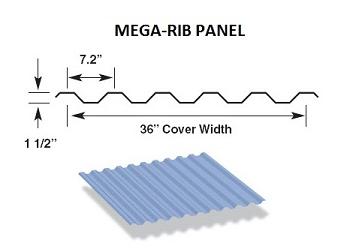

MEGA-RIB PANEL
[EXPOSED FASTENER PANEL]
29, 26, 24, 22, 20 & 18 GAUGES

Mega-Rib
Mega-Rib is a 7.2 exposed fastener panel that
provides optimum strength and spanning capabilities.
Mega-Rib is a metal roof and wall panel that is
equally well suited for industrial and commercial
applications.
Approvals
*Fire Resistance (UL263) Ratings
*Fire Resistance (UL790) of Roof Covering Materials
*Florida State Approval Non-Structural Metal Roofing
*Florida State Approval structural Metal Roofing
*ICC-ES Approval- Mega-Rib 24 ga.
*Impact Resistance (UL2218) Class 4
*Miami Dade Approvals
Section Properties & Load Tables
*Mega Rib 18 ga. 50 KSI
*Mega-Rib 20 ga. 50 KSI
*Mega-Rib 22 ga. 50 KSI
*Mega-Rib 24 ga. 50 KSI
*Mega-Rib 24 ga. 80 KSI
*Mega-Rib 26 ga. 50 KSI
*Mega-Rib 26 ga. 80 KSI
*Mega-Rib 29 ga. 80 KSI

Details
*7.2" Rib Spacing
*Coating: Kynar 500
*Mega-Rib is also available with a 28.8"
coverage, which is standard for 26 gauge panels.
Please specify if 36" coverage is required.
Testing Data
*UL580 Class 90 - Uplift Test
*ICCES Evaluation on 24 Gauge
*Florida State Approval




PANEL PRICING IS BASED PER LINEAR FOOT (LF)
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$2.89 LF 26 25 YEAR BARE GALVALUME 2.67lbs
$4.05 LF 26 40 YEAR KYNAR 500 2.67lbs
$4.40 LF 26 40 YEAR KYNAR 500 "PREMIUM COLORS" 2.67lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$3.43 LF 24 25 YEAR BARE GALVALUME 3.55lbs
$4.72 LF 24 40 YEAR KYNAR 500 3.55lbs
$5.06 LF 24 40 YEAR KYNAR 500"PREMIUM COLORS" 3.55lbs


MINIMUM ORDER OF 5000LBS FOR 22 GAUGE PANELS
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$4.22 LF 22 25 YEAR BARE GALVALUME 4.35lbs
*Product And Installtion Guides are at to top of this page.
