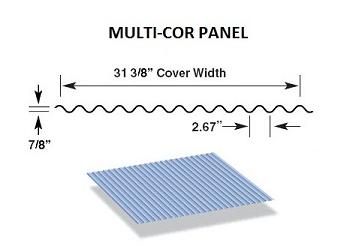

MULTI-COR PANEL
[EXPOSED FASTENER PANEL]
29, 24, & 22 GAUGES

Multi-Cor
Corrugated metal panels were designed and engineered
with greater-than-normal spans and load-carrying
characteristics in mind. They quickly communicate their
high-strength performance capabilities and are equally
well-suited for roof or wall applications.
Approvals
*Fire Resistance (UL790) of Roof Covering Materials
*Impact Resistance (UL2218) Class 4
Section Properties & Load Tables
*Multi-Cor 22 Ga. 50 kSI
*Multi-Cor 24 ga. 50 KSI
*Multi-Cor 24 ga. 80 KSI
*Multi-Cor 26 ga. 50 KSI
*Multi-Cor 26 ga. 80 KSI
*Multi-Cor 29 ga. 80 KSI




PANEL PRICING IS BASED PER LINEAR FOOT (LF)
PRICE GAUGE WARRANTY PAINT SYSTEM LT WEIGHT
$2.63 LF 26 25 YEAR BARE GALVALUME 2.58lbs
$3.69 LF 26 40 YEAR KYNAR 500 2.58lbs
$4.00 LF 26 40 YEAR KYNAR 500 "PREMIUM COLORS" 2.58lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LT WEIGHT
$3.13 LF 24 25 YEAR BARE GALVALUME 3.24lbs
$4.30 LF 24 40 YEAR KYNAR 500 3.24lbs
$4.67 LF 24 40 YEAR KYNAR 500 "PREMIUM COLORS" 3.24lbs


MINIMUM ORDER OF 5000LBS FOR 22 GAUGE PANELS
PRICE GAUGE WARRANTY PAINT SYSTEM LT WEIGHT
$3.94 LF 22 25 YEAR BARE GALVALUME 4.35lbs
*Product And Installtion Guides are at to top of this page.
