MILTI-RIB PANEL
[EXPOSED FASTENER PANEL]
26 & 24 GAUGES

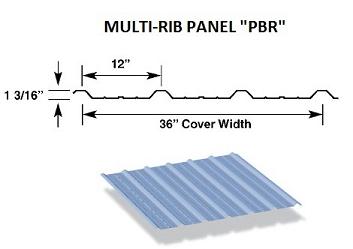

Multi-Rib
Multi-Rib is a multi-use wall and roof panel
used primarily in pre-engineered metal building
applications. Can be installed on as low as a
1:12 pitch if sealant is used on the sidelaps.
If not, a 3:12 pitch is recommended.
Approvals
*Fire Resistance (UL263) Ratings
*Fire Resistance (UL790) of Roof Covering Materials
*Florida State Approval Non-Structural Metal Roofing
*Florida State Approval structural Metal Roofing
*Impact Resistance (UL2218) Class 4
*Texas Department of Insurance Windstorm Approval
Section Properties & Load Tables
*Multi-Rib 22 ga. 50 KSI
*Multi-Rib 24 ga. 50 KSI
*Multi-Rib 24 ga. 80 KSI
*Multi-Rib 26 ga. 50 KSI
*Multi-Rib 26 ga. 80 KSI
*Multi-Rib 29 ga. 80 KSI

Details
As notes this panel can be used on Walls or Roof
however the R-Panel is generally used on the walls
the Multi-Rib is also known as a PBR Panel "Purling Bareing Panel"
This means it's degined to support weight on the foof.
Testing Data
*UL580 Class 90 - Uplift Test
*UL 2218 - Class 4 Impact Resistance
*Florida State Approval




PANEL PRICING IS BASED PER LINEAR FOOT (LF)
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$2.71 LF 26 25 YEAR BARE GALVALUME 2.58lbs
$3.54 LF 26 30 YEAR SILICONIZED POLYESTER 2.58lbs
$3.80 LF 26 40 YEAR KYNAR 500 2.58lbs
$4.13 LF 26 40 YEAR KYNAR 500 "PREMIUM COLORS" 2.58lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$3.22 LF 24 25 YEAR BARE GALVALUME 3.13lbs
$4.44 LF 24 40 YEAR KYNAR 500 3.13lbs
$4.76 LF 24 40 YEAR KYNAR 500 "PREMIUM COLORS" 3.13lbs
*Product And Installtion Guides are at to top of this page.
