U-PANEL
[EXPOSED FASTENER PANEL]
29, 26, & 24GAUGES

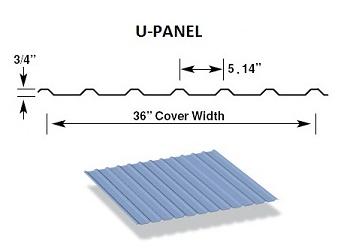

U-PANEL
U-Panel is an exposed fastener wall and roof panel
that is also used extensively as a liner or
partition panel.
Approvals
Fire Resistance (UL263) Ratings
Fire Resistance (UL790) of Roof Covering Materials
Florida State Approval Non-Structural Metal Roofing
Florida State Approval structural Metal Roofing
Impact Resistance (UL2218) Class 4
Section Properties & Load Tables
PBU-PANEL 24 ga. 50 KSI
PBU-PANEL 26 ga. 50 KSI
PBU-PANEL 26 ga. 80 KSI
PBU-PANEL 29 ga. 80 KSI
U-PANEL 24 ga. 50 KSI
U-PANEL 26 ga. 50 KSI
U-PANEL 26 ga. 80 KSI
U-PANEL 29 ga. 80 KSI

Testing Data
UL580 Class 90 - Uplift Test
UL 2218 - Class 4 Impact Resistance




PANEL PRICING IS BASED PER LINEAR FOOT (LF)
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$2.90 LF 26 25 YEAR BARE GALVALUME 2.58lbs
$3.78 LF 26 30 YEAR SILICONIZED POLYESTER 2.58lbs
$4.07 LF 26 40 YEAR KYNAR 500 2.58lbs
$4.42 LF 26 40 YEAR KYNAR 500 "PREMIUM COLORS" 2.58lbs
PRICE GAUGE WARRANTY PAINT SYSTEM LF WEIGHT
$3.46 LF 24 25 YEAR BARE GALVALUME 3.13lbs
$4.76 LF 24 40 YEAR KYNAR 500 3.13lbs
$5.09 LF 24 40 YEAR KYNAR 500 "PREMIUM COLORS" 3.13lbs
*Product And Installtion Guides are at to top of this page.
